5052/5083/5A05/5A06 Aluminum round tube

Aluminum tube/pipe

Available Size:

Material:

Payments:

30% T/T deposit,70% T/T or 70% L/C at sight balance

Product Details

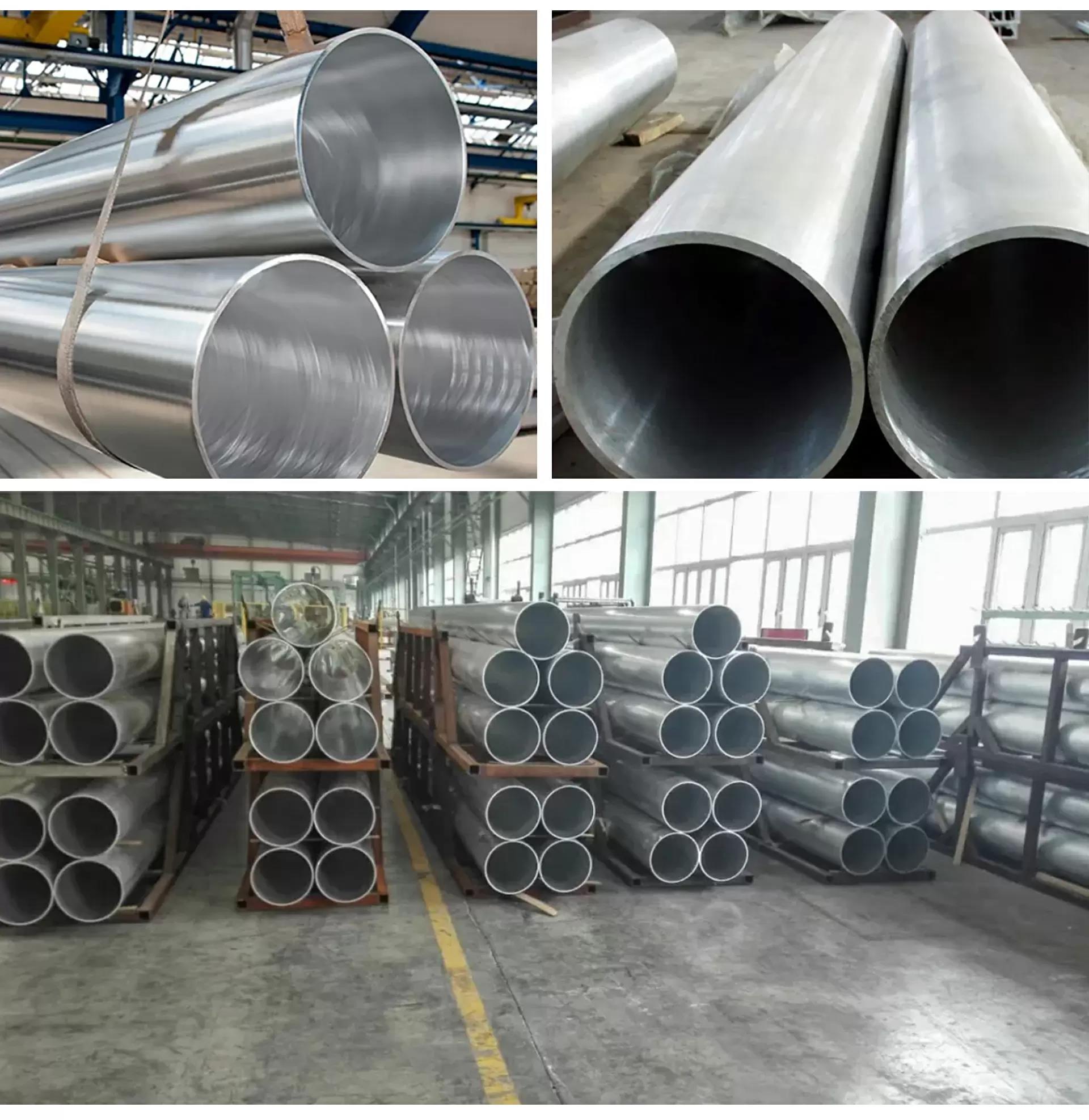

Aluminium tubes available for sale in size range of 6mm to 253mm, with custom thickness and length.We produce and sell aluminium tubes in standard sizes, aswell as custom cut size tubes.

Application

Aluminum tubes are mainly divided into the following types


Divided by shape: square tube, round tube, pattern tube, shaped tube, global aluminum tube.


According to the extrusion method: seamless aluminum tube and ordinary extrusion tube


According to accuracy: ordinary aluminum tube and precision aluminum tube, in which precision aluminum tube generally need to be reprocessed after extrusion, such as cold drawing, fine pumping, rolling.


By thickness: ordinary aluminum tube and thin wall aluminum tube


Performance: corrosion resistance, light weight.

Thickness 0.4mm-20mm or as your required Length:  5mm-2000mm or as your required
Outer Diameter 10-2500mm or as your required Standard: ASTM,AISI,JIS,GB, DIN,EN
Surface Treatment Anodized,brushed,polished,mill finished,power coated,sand blast.
Surface Protection Oleo phobic coating,protective film,paint coating
Technique Hot rolled,cold rolled,forging,casting,etc. Tolearnce 0.15-3.0mm(Thickness Tolerance:+/-0.02mm)
Shape  Round, Square, Rectangular, Oval, Hexagonal Certification:  ISO, SGS,BV
Grade 1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7475 7075 etc.
8000 series:8011
Application Aluminium pipes  are widely used in aircraft structure,rivets,missle components,truck wheel,screw elements, frame work, support columns, gatesand other various structrues.
Temper H12,H14,H16,H18,H20,H22,H24,H26,H28,H32,H36,H38,HO,H111,H112,H114,H116,H118,H321.
Payment Terms T/T, L/C at sight,West Union,D/P,D/A,Paypal Loading port any port in China
Packing standard export packing (inside:water proof paper,outside:steel covered with strips and pallets)
Container size 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)



Series Grade Application Feature
1000 Series 10,501,060 Utensil,decoration, -Easy to process and weld,resistant rust,
,1070,1100,1200 reflecting plate,printing plate, high conductibility of electric and hear, low strength
heatproof plate -Kinds of Cookware
2000 Series 2014,2017,2024, Aeronautics and Astronautics High hardness,The highest copper content
2A16(LY16)2A12(LY12) 2A06(LY6)
3000 Series 30,033,004 Utensil(F/P,inside of rice cooker), -A3003:Anodizing Cook wares ,frying pan,
30,053,105 aluminum can,material for interior and exterior of building coating ,cooker, electric rice cooker,Mobile phone cover and Battry case
3104,3A21
5000 Series 5083,5052, Ship board heatproof apparatus, -Eeasy to process and weld and superior hardness and hearproof
5754,5005, material for interior and exterior of building,
5083,5A05, Parts of Electronic tools, Automobile Components
5086,5A02,
5182,5252,
5454,5A06
6000 Series 60,616,063 IT equipment and facility, -Easy to process,superior surface treatment
6082 Mould material,motor material,
Automatic line,machine and plant etc.
7000 Series 7075,7050, 7A04 ,7A09 ,7005 Aircraft structure and Futures High stress structure parts and mould manufacturing with high strength and corrosion resistance
8000 Series 8011 kitchen utensils, Bottle cap -8000 series is duable to process with special alloy



features


It is a kind of high strength duralumin, which can be strengthened by heat treatment. It has medium plasticity in annealing, hardening and hot state, and good weldability in spot welding. It tends to form intercrystalline cracks in gas welding and argon welding. The machinability of aluminum tube is good after quenching and cold work hardening, but poor in annealing state. Corrosion resistance is not high, often using anodic oxidation treatment and paint method or surface coated with aluminum layer to improve corrosion resistance. It can also be used as a mold material.


Aluminum tube advantages: first, welding technology advantages: suitable for industrial production of thin-wall copper aluminum tube welding technology, known as a world-class problem, is the key technology of air conditioner connecting tube aluminum copper.


Second, the service life advantage: from the inner wall of the aluminum tube, because the refrigerant does not contain water, the inner wall of the copper and aluminum connecting pipe will not corrode.


Three is the advantage of energy saving: the connection pipe of the indoor unit and outdoor unit of the air conditioner, the lower the heat transfer efficiency is, the more energy saving, or the better the heat insulation effect is, the more electricity saving.


Four is excellent bending performance, easy to install, move


use

Aluminum tube is widely used in all walks of life, such as: automobile, ship, aerospace, aviation, electrical appliances, agriculture, mechanical and electrical, home furnishing, etc., aluminum tube has been everywhere in our life.



Packaging & Shipping

Common Package:

Waterproof Kraft Paper + Wooden Pallet (each 3 tons) + Bundle with steel strip.

Or Package can also according to your requirements.

The time of delivery:

Within 7-10 days after receipt of advance payment
