China Color coated galvanized corrugated steel sheet prepainted corrugated roofing plate for worksho

Corrugated Roofing Sheets

Available Size:



SGCC, SGCH, G550, DX51D, DX52D, DX53D


30% T/T deposit,70% T/T or 70% L/C at sight balance

Product Details
Thickness0.12-4.0 mm
Width20-1500 mm,Normal width is 914/1000/1219/1250/1500 mm
Type of coating process

Front:double coated&double drying;

Back:double coated&double drying;single coated&double drying;


Standard color:red,blue,white,grey

Special color:according to RAL color

CharacteristicsWeather proof;heating insulation;fireproof;anti-rust;sound insulation;long life span:more than 15 years
Advantages1.low foundation cost
2.easy construction
3.time and labor saving
4.labor saving

Tied up with steel strips and wrapped with water proof paper

Application1.construction:prefabricated house,steel house,mobile house,modular house,villa, bungalow design,portable house/carbin,ready made house,kiosk booths,steel building...
2.container manufacturing
3.household appliances and furniture
4.vehicle and vessel manufacturing

5.others,like machinery structure parts,manufacturing shells of motors and so on

ShipmentWithin 10-15 workdays,25-30 days when the quantity beyond 1000 tons.




Corrugated sheet classification: profiled steel sheets are usually classified according to different application parts, plate shape wave height, overlap structure, and material, etc., and there are many classification methods. Common classification methods are as follows: (1) According to the application position-divided into roof panels, wall panels, floor decks and ceiling panels. In use, color steel plates are used as wall decoration panels at the same time, and the architectural decoration effect is relatively novel and unique. (2) Classified by wave height—divided into high wave board (wave height ≥70mm), medium wave board (wave height<70mm) and low wave board (wave height<30mm) (3) Classified by substrate material—divided into hot-dip galvanized substrate, thermal Galvalume and hot-dip galvanized aluminum substrate, etc. (4) Classified according to the structure of the plate seam-divided into lap, undercut and crimped structures. Among them, undercut and crimped medium and high-wave boards should be used as roof panels with higher waterproof requirements; overlapped medium and high-wave galvanized sheets should be used as floor panels; overlapped low-wave boards should be used as wall panels.

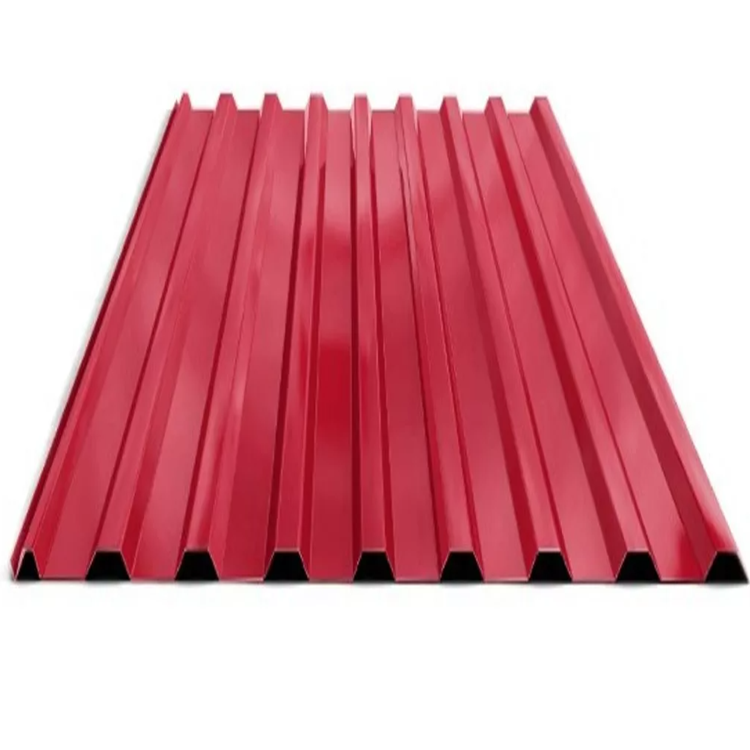

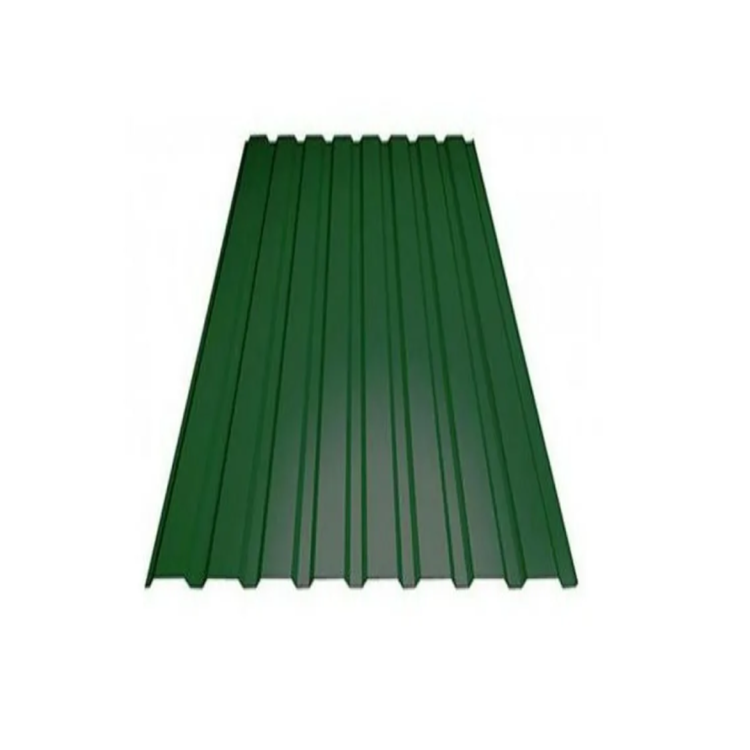

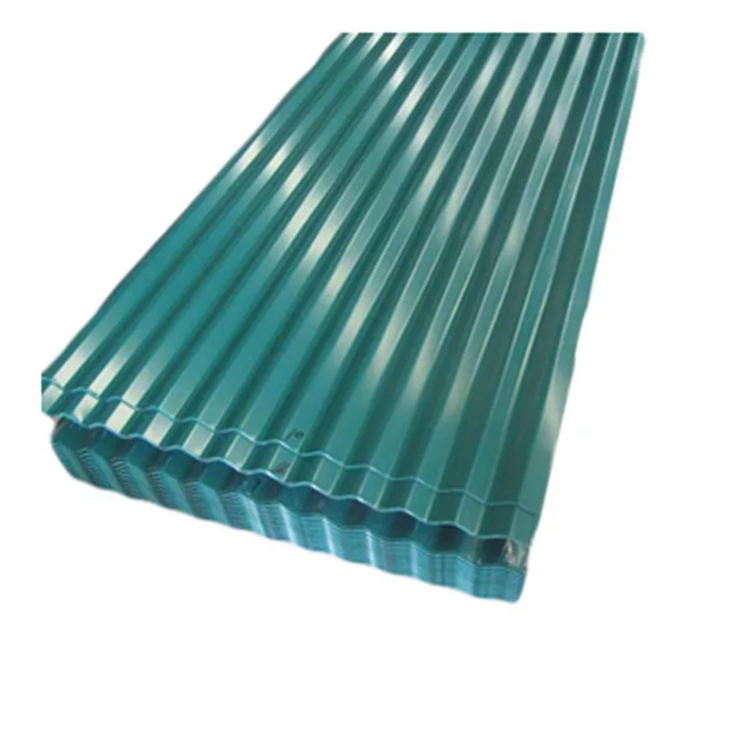

Corrugated roofing sheet is also called profiled sheet. It uses color coated steel sheet, galvanized sheet and other metal sheets to be rolled and cold-formed into a profiled board of various wave shapes. It is suitable for industrial and civil buildings, warehouses, special buildings, and large spans. Roof, wall and interior and exterior wall decorations of steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, earthquake resistance, fire prevention, rainproof, long life, and maintenance-free. It has been widely promoted and applied. Most of the steel cold-rolled sheets on the market, after coating: galvanized or aluminum-zinc, paint layer, the width is generally 600-1200mm pressed into, dedicated to building roofs, wall enclosures. Because of its good plasticity, it can better adapt to the requirements of various architectural shapes, with beautiful appearance, durable color, and environmental protection.

Packaging & Shipping

Common Package:

Waterproof Kraft Paper + Wooden Pallet (each 3 tons) + Bundle with steel strip.

Or Package can also according to your requirements.

The time of delivery:

Within 7-10 days after receipt of advance payment
