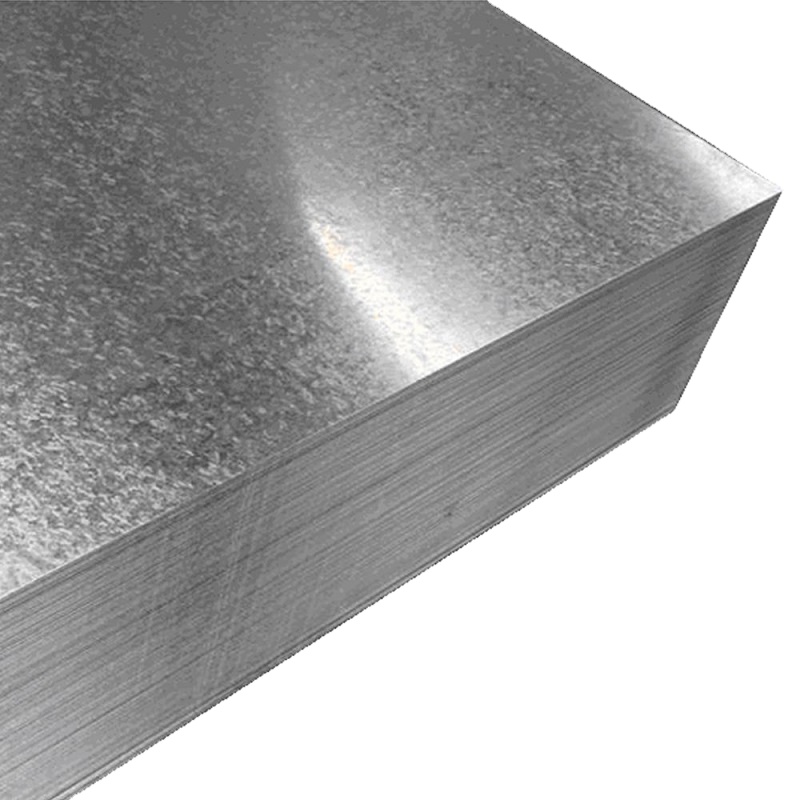

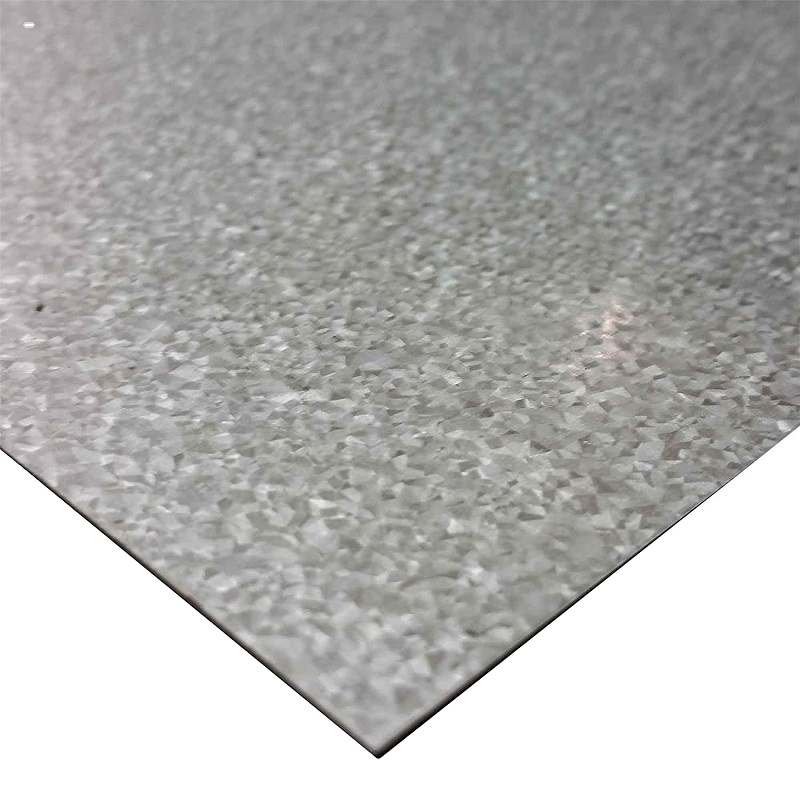

DC01 Galvanized Steel Sheet

Galvanized Steel Sheet

Available Size:

as required

Material:

galvanized steel

Payments:

30% T/T deposit,70% T/T or 70% L/C at sight balance

Product Details


Product Name
Prepainted galvanized/galvalume Steel Coil/Sheet
Width
30mm to 1250mm(±2mm)
Thickness
0.12mm to 1.5mm(±0.02mm)
Zinc Coating
Primer: 5-7 microns
Top: 10-25 microns
Back: 5-25 microns or as request
Coil weight
Normally 3- 5 tons, or as your request
Coil ID
508mm or 610mm
Hardness
Softy, half hard and full hard quality
Substrate
Cold rolled substrate
Paint coating
PE,PVC,PVF,PVDF ect
Coating layer
2/1,2/2,3/3 painting & drying
Glossy
high glossy,normal glossy,lower glossy
Standard
ASTM, JIS, GB, AISI, DIN, BS,EN
Grade
Q195 Q235 Q345
SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570
SGHC SGH340 SGH400 SGH440 SGH490 SGH540
DX51D DX52D DX53D DX54D DX55D DX56D DX57D
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
SS230 SS250 SS275 SS340 SS550
Packing
Industry standard packaging or according to client's requirement
Payment terms
T/T,L/C
Delivery time
Fast delievery in 7 days,up to order quantity
MOQ
1 Tons
What Does Galvanized Mean?
Galvanizing is the process of applying a protective coating to steel or iron. The coating is made from zinc and is used to halt the formation of rust. Galvanization is important because it provides long-lasting protection for steel and iron products.

How Does Galvanization Protect the Base Metal Underneath?
1. The zinc coating prevents corrosive substances like acid (acid rain for example) from reaching the metal underneath.

2. Galvanization protects from rusting. When the coating is scratched, zinc will still “sacrifice its anode” easier than the base metal does – which protects it from rusting.
3. The zinc protects the metal by corroding faster than the base metal. Sometimes a special ingredient called a “chromate” is added to the galvanized metal, this makes it corrode even faster. It may sound like that is not what you want to happen, but remember the zinc corroding before the metal is what protects the metal underneath from rusting.


Application


Packaging & Shipping

Common Package:

Waterproof Kraft Paper + Wooden Pallet (each 3 tons) + Bundle with steel strip.

Or Package can also according to your requirements.

The time of delivery:

Within 7-10 days after receipt of advance payment
