6061 6082 6063 Aluminum checkered plate

Aluminum Coil/Sheet

Available Size:

0.2mm to 500mm

Material:

Payments:

30% T/T deposit,70% T/T or 70% L/C at sight balance

Product Details

Aluminium plate with Excellent after-sales service team, factory direct shipment。Supply Quatlity Aluminium plate Aluminum Checkered Plate。manufacturing industry。

Application

Aluminum plate is the thickness of more than 0.2mm to 500mm below,200mm width, length within 16m of the aluminum material is called aluminum sheet or aluminum sheet,0.2mm below for aluminum,200mm width for platoon or strip (of course, with the progress of large equipment, the widest can do 600mm aluminum plate is also more).

Aluminum plate refers to the rectangular plate processed by aluminum ingot rolling, which is divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium thickness aluminum plate, pattern aluminum plate.


Aluminum plate is usually divided into the following two kinds:


1. According to the composition of alloy:


High purity aluminum plate (rolled from high purity aluminum content above 99.9)


Pure aluminum plate (basically rolled from pure aluminum)


Alloy aluminum plate (composed of aluminum and auxiliary alloys, usually aluminum copper, aluminum manganese, aluminum silicon, aluminum magnesium, etc.)


Composite aluminum plate or brazed aluminum plate (special purpose aluminum plate material obtained by means of composite of multiple materials)


Aluminum-clad aluminum plate (aluminum plate coated with thin aluminum plate for special use)


2. According to thickness :(unit mm)


Sheet (aluminum sheet) 0.15-2.0


Conventional sheet (aluminum sheet) 2.0-6.0


Medium plate (aluminum plate) 6.0-25.0


Aluminum plate 25-200

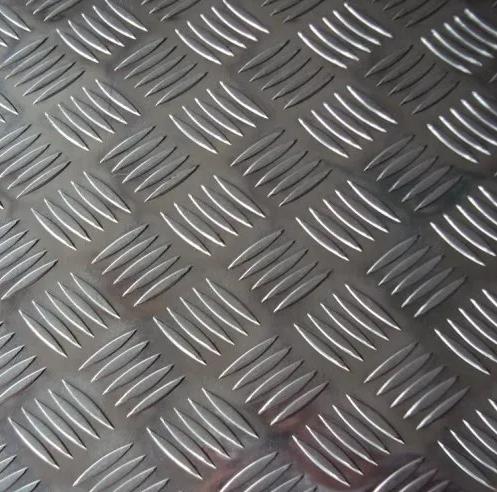

Five aluminum panels with rib pattern

Five aluminum panels with rib pattern

Super thick plate more than 200



use

1. Lighting lighting            2, solar reflector           3, architectural appearance          4, interior decoration: ceiling, wall, etc.

5, furniture, cabinets     6, the elevator        7. Signs, nameplates, cases and bags        8, car interior and exterior decoration

9. Interior decorations: such as photo frames      10, household appliances: refrigerator, microwave oven, audio equipment, etc.

11. Aerospace and military aspects, such as China's large aircraft manufacturing, Shenzhou spacecraft series, satellites and other aspects. 12, mechanical parts processing 13, mold manufacturing 14, chemical/insulation pipeline coating. 15. High quality board


Thickness            0.1-400mm,etc            Length:             100-12000mm,or as required
Width             20-3000mm,etc            Standard:            ASTM,AISI,JIS,GB, DIN,EN
Certification:             ISO, SGS,BV
Surface finish            mill,bright,polished,hair line,brush,sand Blast,checkered,embossed,etching,etc
Grade            1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7475 7075 etc.
Temper            H12,H14,H16,H18,H20,H22,H24,H26,H28,H32,H36,H38,HO,H111,H112,H114,H116,H118,H321.
Payment Terms            T/T, L/C at sight,West Union,D/P,D/A,Paypal            Loading port            any port in China
Packing            standard export packing (inside:water proof paper,outside:steel covered with strips and pallets)
Container size            20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

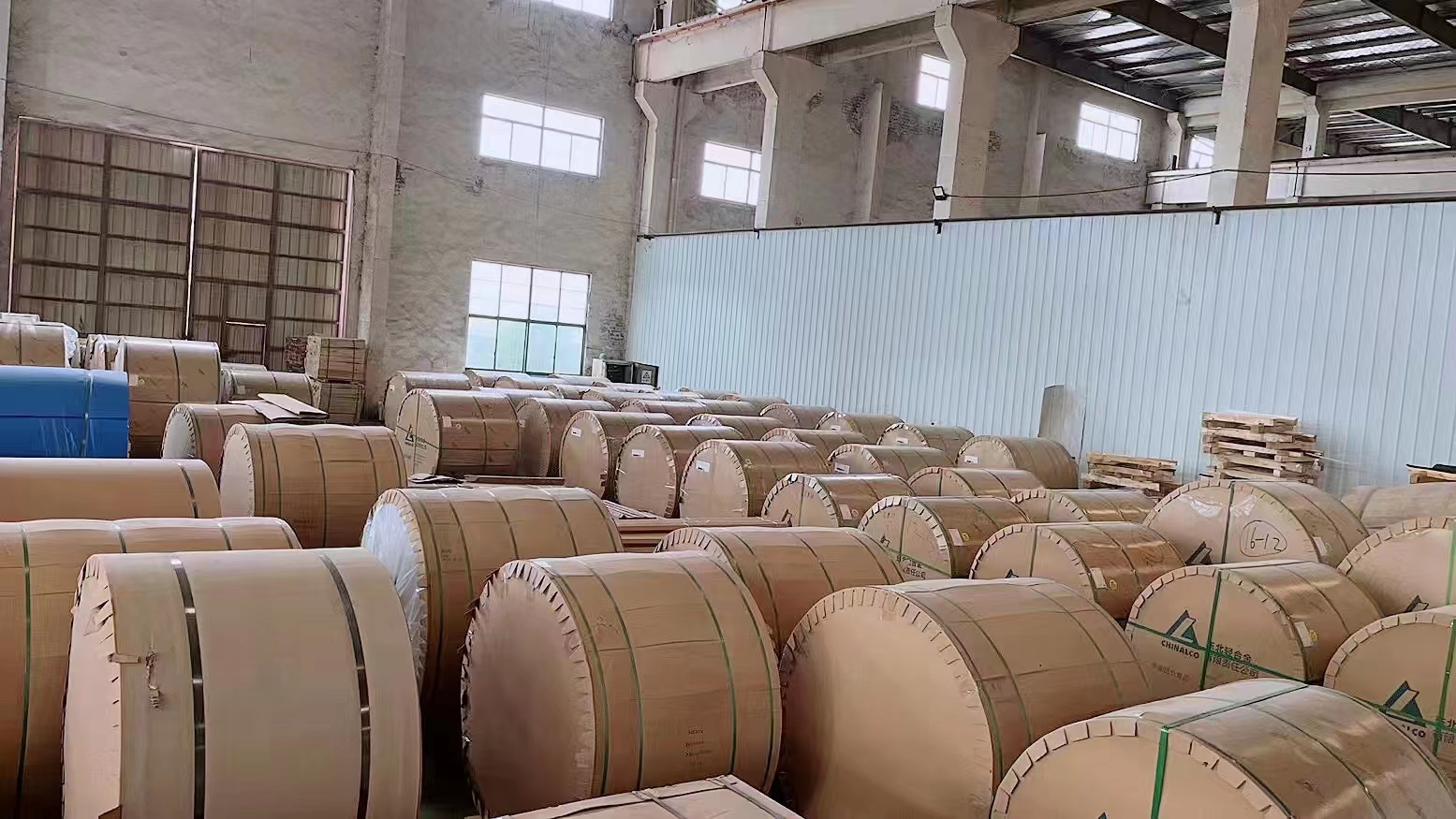

Packaging & Shipping

Common Package:

Waterproof Kraft Paper + Wooden Pallet (each 3 tons) + Bundle with steel strip.

Or Package can also according to your requirements.

The time of delivery:

Within 7-10 days after receipt of advance payment
